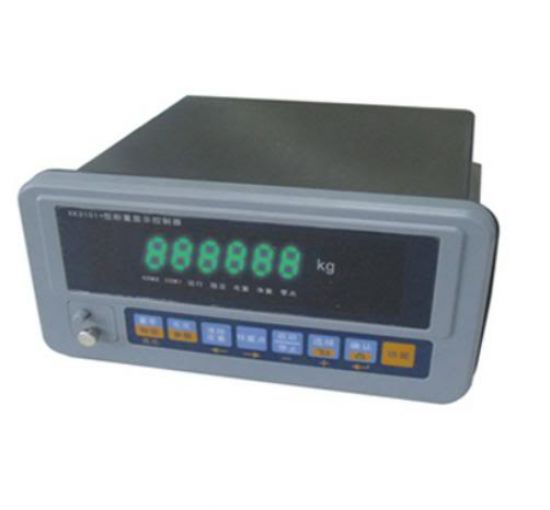

WEIGHING CONTROL INDICATOR - XK3101
- Weighing control indicator is a control indicator that used to the industrial control fields.
- It has many kinds of series interface (modbus and profibus), on-off input and output interface, extensive analogy data interface, on-off output can set in four ways, can apply into blending, fixed data, upper and lower limit testing etc conditions.
- Abundant interfaces can be connected with DCS system directly.
- Indicator housing is aluminium, and conveniently embedded into control cabinet. Indicator is designed strictly accuracy class is III, can apply into all kinds of industrial weighing control fields.
- Model: XK3101+
- Adopts 7 bits VFD (vacuum fluorescent display)
- Isolated RS232/RS485 communication interface
- 10 on-off (optical coupling isolation) (4 input, 6 OC output)
- Keyboard lock function
- Profibus interface (optional)
- 4-20mA/0-10V analoge output (optional)
- Built-in assistant DC12V/300mA power supply output (be able to drive relay output)
- On-off output can be set batching mode (double speed double material, single speed four material), fixed value mode and top and bottom limitation
